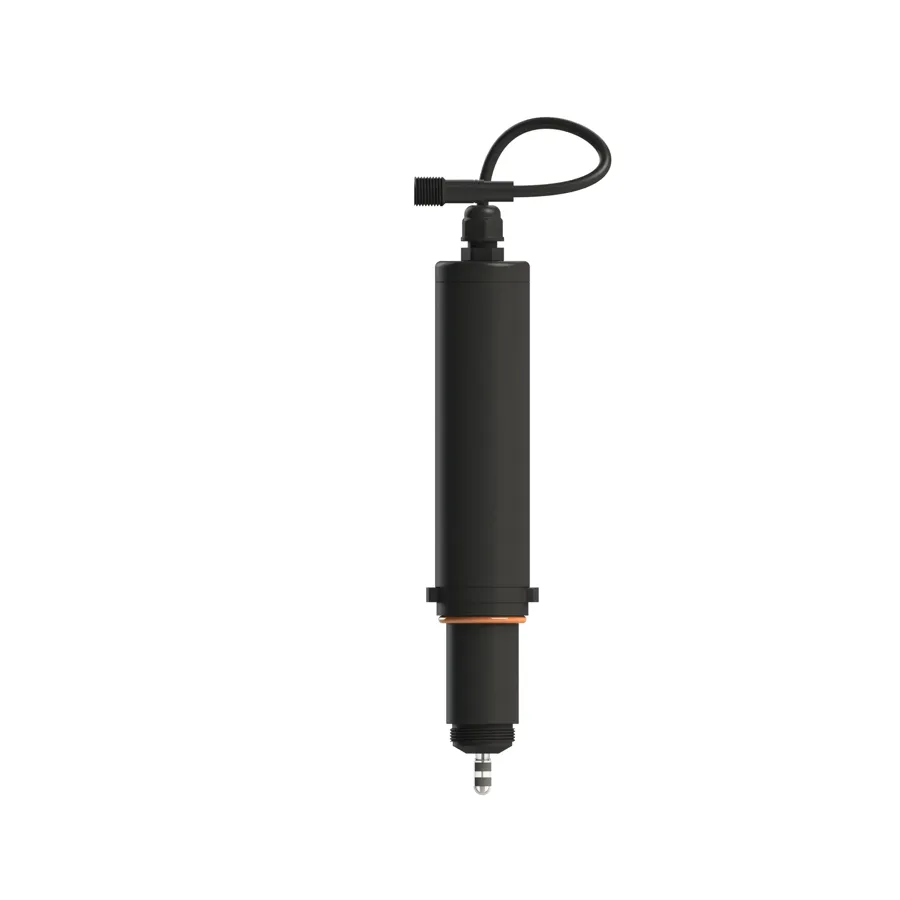

Digital Disinfectant Sensor YG-CP (Membraneless)
Las especificaciones detalladas se muestran en inglés.
The membraneless digital disinfectant sensor is a three-electrode potentiostatic amperometric sensor developed by YuanGan with proprietary intellectual property. It measures disinfectant concentrations such as free chlorine, chlorine dioxide (high-purity) and ozone, and is mainly used in treated water at the plant outlet, distribution networks, secondary water supply, network ends and swimming pools. An ARM processor and efficient filtering algorithm built into the electrode effectively suppress noise, and RS485 and 4–20 mA outputs make it easy to connect to computers and network monitoring systems.
Typical applications
- Water Treatment Plants
- Distribution Network
- Secondary Water Supply
- End Users
- Swimming Pool Water
- Other Water Treatment Equipment
yan@yuangankeji.com · +86-400-1688-667 · WhatsApp +86 151 7883 0466
Key features
- 01
Electrochemical sensor
No reagent consumption, no pollutant discharge
- 02
Membraneless design
No membrane cap or electrolyte replacement
- 03
Built-in high-precision sampling circuit
Stable zero point, high sensitivity, good linearity
- 04
Sensor correlation
Correlates accurately with the DPD method
- 05
IP68 ingress protection
Supports submersible operation
Technical Specifications
| System parameters | |
|---|---|
| Measured parameters: | Free chlorine, chlorine dioxide (high-purity), ozone, temperature |
| Operating voltage: | DC 9–28 V |
| Peak power: | 0.5 W |
| Communication interface: | RS485, 4–20 mA |
| Electrode material: | Dual platinum rings + silver chloride |
| Sample flow velocity: | >400 mL/min, and the flow rate must be kept stable |
| Operating temperature: | -5–45 °C (non-freezing) |
| Operating pressure: | <0.1MPa |
| Mounting: | RBMS |
| Disinfectant | |
| Measurement method: | Reagent-free electrochemical three-electrode amperometric system |
| Range: | 0–5 / 20 mg/L |
| Resolution: | 0.001 mg/L |
| Limit of detection: | 0.030 mg/L or lower |
| Accuracy: | ±3% (DPD correlation error ±10% or +0.05mg/Lwhichever is greater) |
| Repeatability: | ±3% |
| Calibration method: | One- or two-point calibration |
| Response time (T90): | ≤90 s |
| Temperature | |
| Measurement method: | Thermistor method |
| Range: | -5°C~60°C |
| Resolution: | 0.1°C |
| Accuracy: | ±0.4°C |
| Repeatability: | 0.2°C |
| Response time (T90): | ≤25 s |
| Calibration method: | One-point calibration |

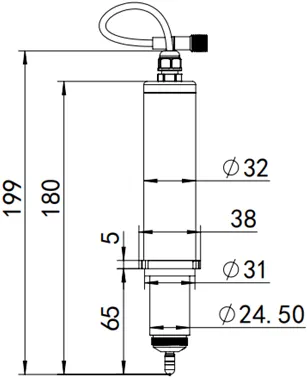

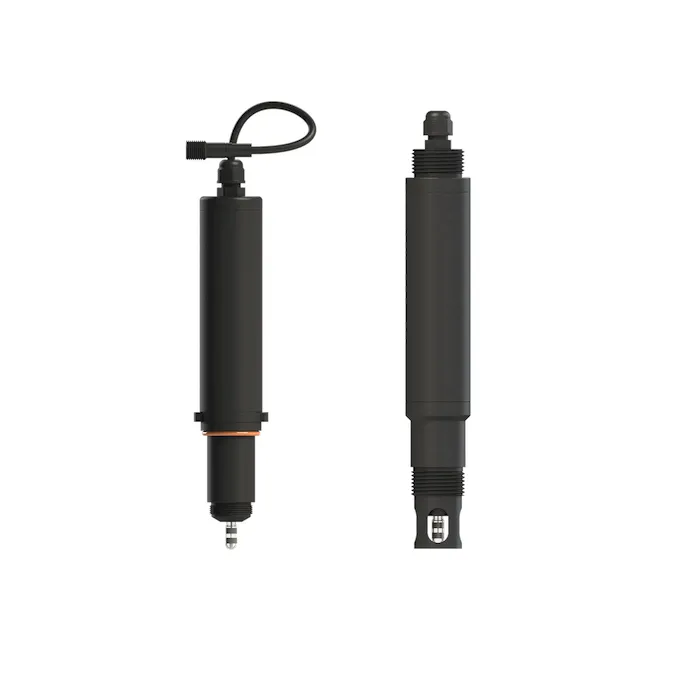

Ordering Information
| Product Name | Dimensions (W × H × D) | Mounting | Model |
|---|---|---|---|
| Membraneless free chlorine sensor | 199 mm × Φ32 mm | RBMS | YG-CP/DP |
| Membraneless chlorine dioxide sensor | 199 mm × Φ32 mm | RBMS | YG-CP/11 |
| Membraneless ozone sensor | 199 mm × Φ32 mm | RBMS | YG-CP/21 |
| Membraneless free chlorine sensor (threaded) | 215 mm × Φ32 mm | NPT3/4 thread | YG-CP/02 |
| Membraneless chlorine dioxide sensor (threaded) | 215 mm × Φ32 mm | NPT3/4 thread | YG-CP/12 |
| Membraneless ozone sensor (threaded) | 215 mm × Φ32 mm | NPT3/4 thread | YG-CP/22 |
