Accessories & Flow Cells

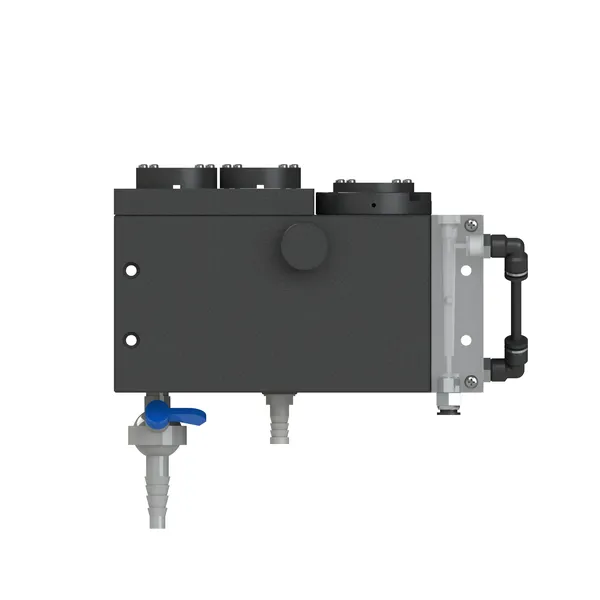

Multi-Parameter Flow Cell YG-QHC/01
Las especificaciones detalladas se muestran en inglés.
This multi-parameter flow cell has a minimalist, compact design that takes little space and is easy for users to integrate. Users can choose any combination of turbidity, disinfectant (free chlorine / chlorine dioxide / ozone / total chlorine / trichloroisocyanuric acid), pH, ORP, pH/ORP, conductivity and dissolved oxygen.
Typical applications
- Water Treatment Plants
- Water Distribution Network
- Swimming Pools
- Cooling Circulating Water
- Water Treatment Projects
yan@yuangankeji.com · +86-400-1688-667 · WhatsApp +86 151 7883 0466
Key features
- 01
Simultaneous multi-parameter output
Turbidity, disinfectant, pH/ORP, conductivity, dissolved oxygen, temperature value
- 02
Highly integrated
Integrated flow cell combines multiple monitoring parameters
- 03
Built-in regulating valve
Inlet flow can be adjusted to site conditions
- 04
Transparent acrylic flow meter
Shows in real time whether inlet flow is within the normal range
Technical Specifications
| System parameters | |
|---|---|
| Compatible sensors: | Turbidity, disinfectant (free chlorine / total chlorine / chlorine dioxide / ozone / trichloroisocyanuric acid), pH, ORP, pH/ORP, conductivity, TDS, dissolved oxygen |
| Dimensions: | 237 × 209 × 68 mm (W × H × D, sensor not included) |
| Weight: | Approx. 1.7 kg (sensor not included) |
| Material: | ABS+POM |
| Sample flow rate: | 0.5-1L/min |
| (Note: specifications may change with product improvements; YuanGan reserves the right to modify them.) | |
