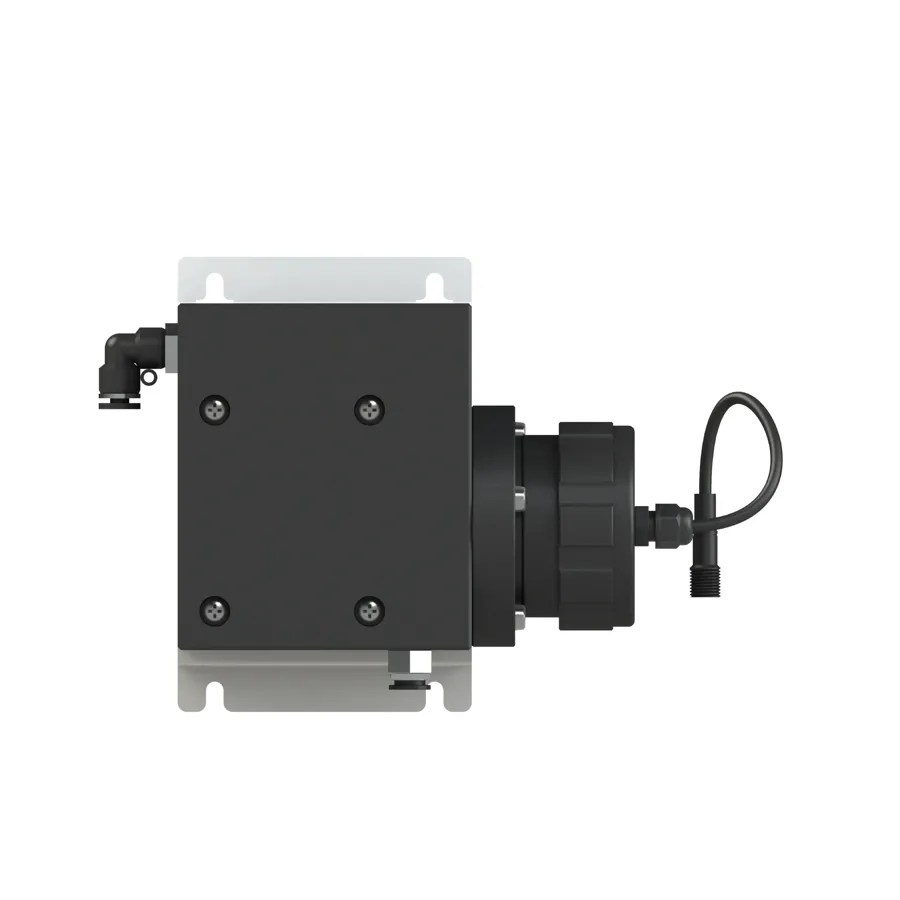

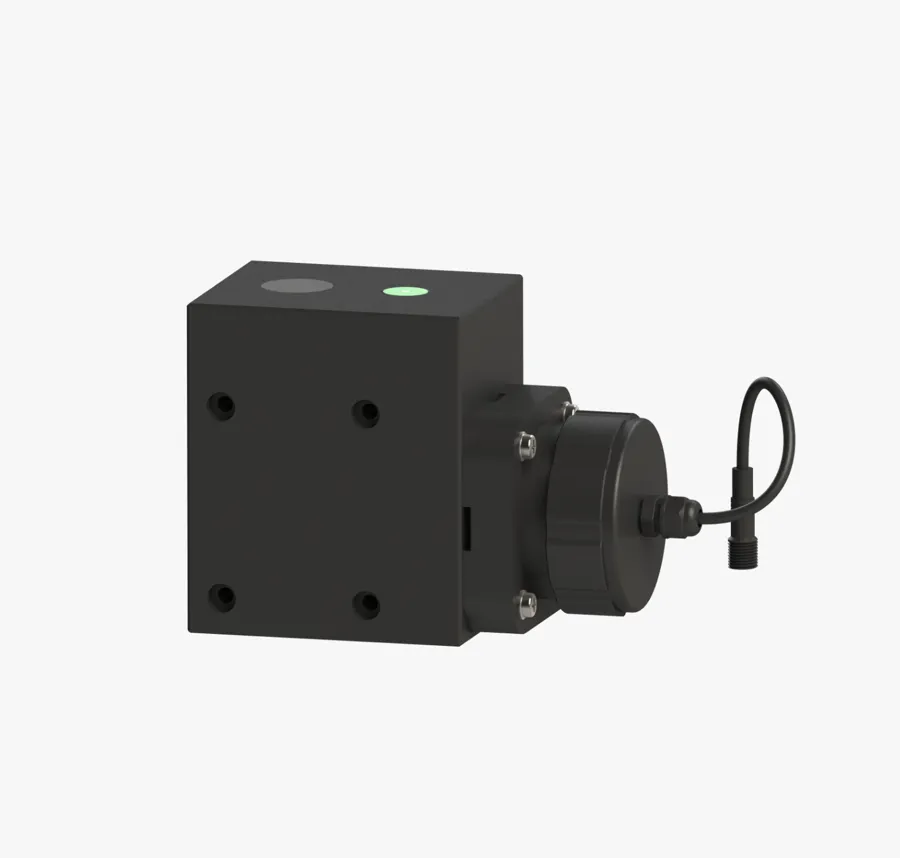

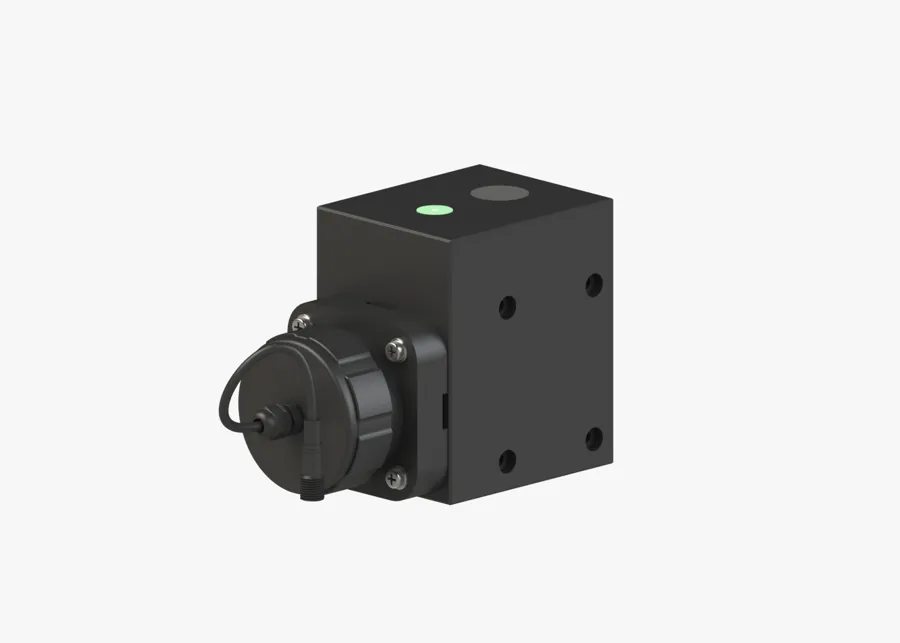

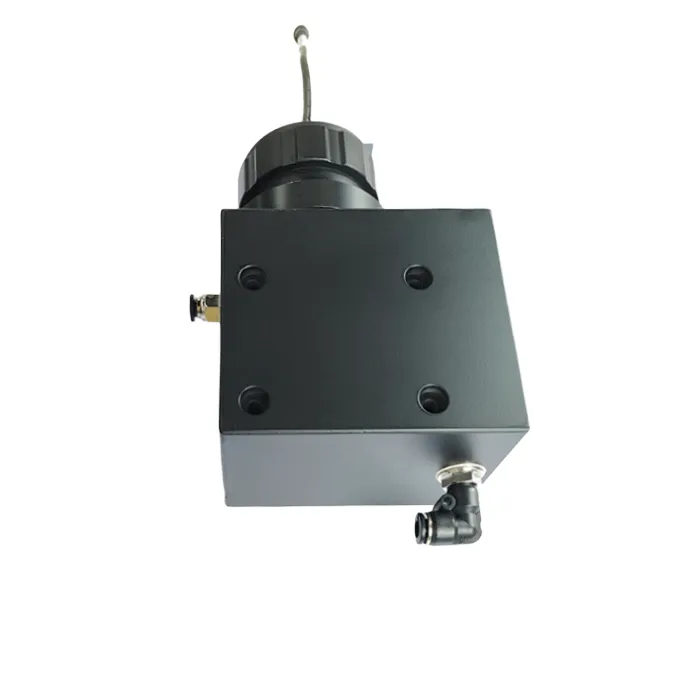

Low-Range Turbidity Sensor YG-TP/P1 (Pressure-Rated)
Las especificaciones detalladas se muestran en inglés.
The pressure-rated low-range turbidity sensor is a proprietary patented product developed by YuanGan for online drinking-water quality monitoring. It offers an ultra-low detection limit, high-precision measurement, fast response and long maintenance-free operation, and is widely used for online turbidity monitoring of treated water at the plant outlet, secondary water supply, network-end tap water, direct drinking water, membrane-filtered water, swimming pools and more.
Typical applications
- Treated Water (Plant Outlet)
- Secondary Water Supply
- Network-End (Tap) Water
- Direct Drinking Water
- Membrane-Filtered Water
- Swimming Pool Water
yan@yuangankeji.com · +86-400-1688-667 · WhatsApp +86 151 7883 0466
Key features
- 01
Pressure-rated flow channel
Bubbles do not easily form
- 02
Sealed water path
Facilitates sample recovery
- 03
Compact size
Easy system integration
- 04
Self-cleaning optical window
Longer maintenance interval
Technical Specifications
| Operating voltage: | DC 24 V (supports 9–28 V wide-voltage input) |
|---|---|
| Peak power: | 5 W |
| Measurement method: | 90° light scattering method (laser light source) |
| Light source: | 660nm laser |
| Range: | 0–100 NTU |
| Resolution: | 0.0001 NTU(<1 NTU), 0.001 NTU(≥1 NTU) |
| Limit of detection: | 0.005 NTU |
| Accuracy: | 2% or ±0.02 NTU (whichever is greater); (based on Formazin primary standard at 25 °C) |
| Operating temperature: | -5–45 °C (non-freezing) |
| Operating mode: | Pressurized flow-through |
| Operating pressure: | ≤0.6 MPa (standard) ≤1 MPa (optional; specify when ordering) |
| Sample flow rate: | 100–1000 mL/min (recommended: 500 mL/min) |
| Dimensions: | 192 × 147 × 98 mm (W × H × D, including fittings and backplate) |
| Housing material: | ABS |
| Digital output: | RS485 Modbus protocol, 4–20 mA output |
| (Note: specifications may change with product improvements; YuanGan reserves the right to modify them.) | |
