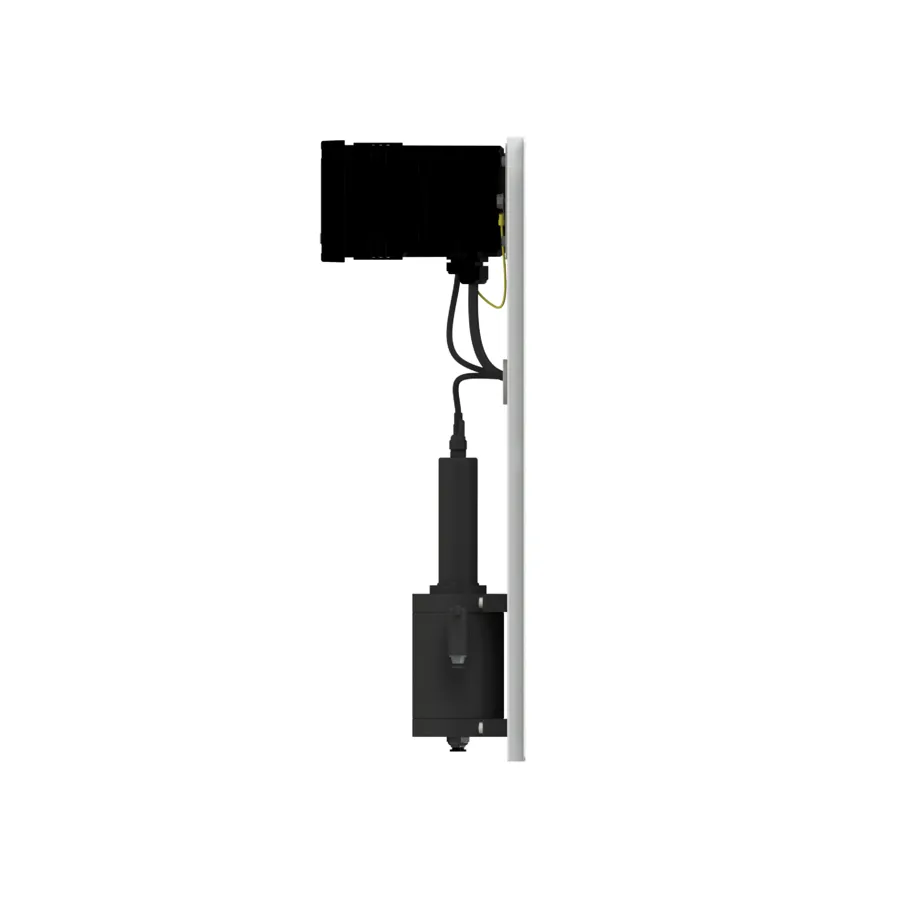

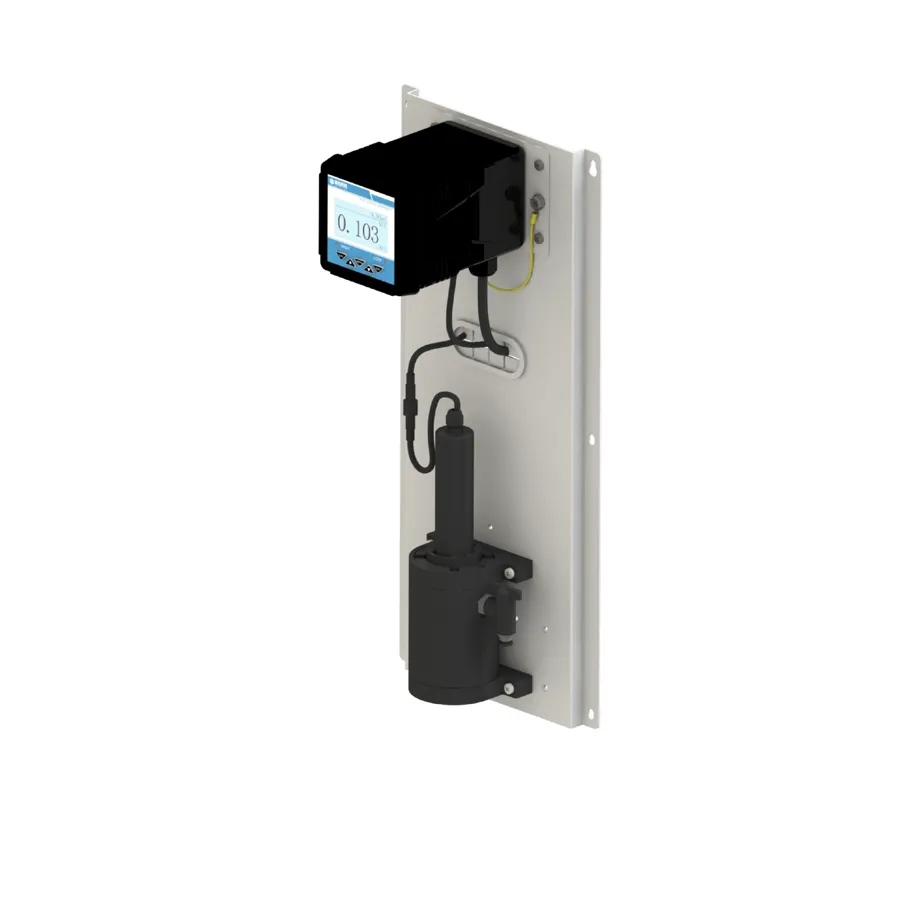

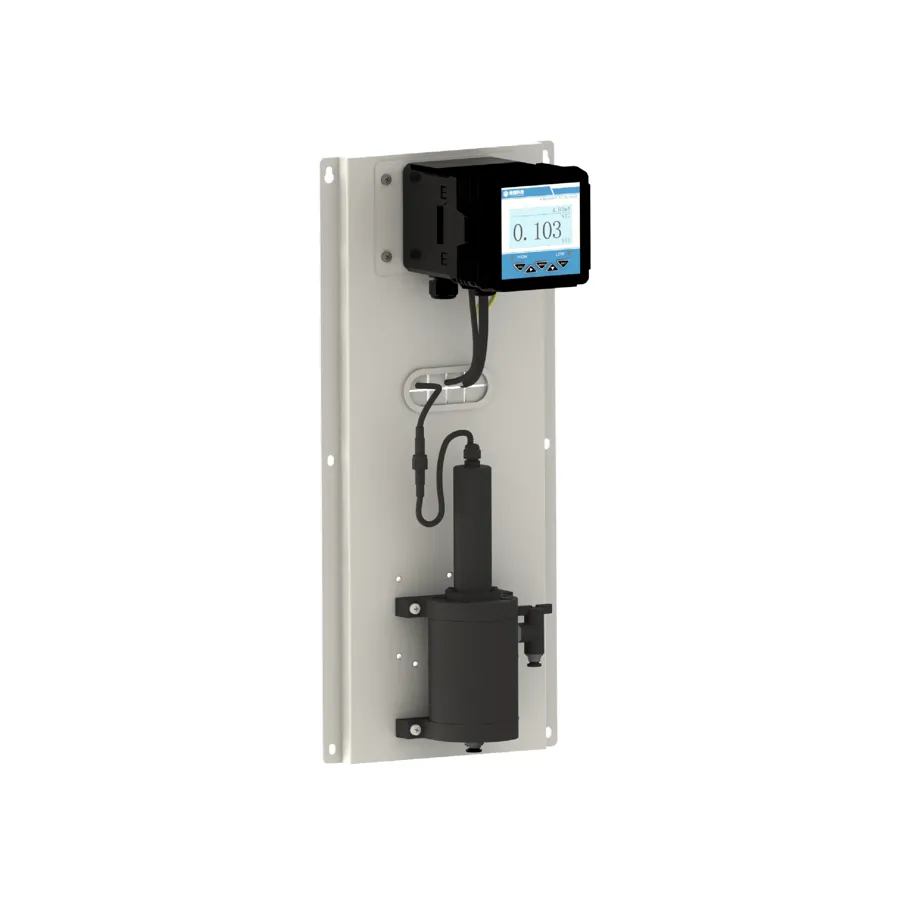

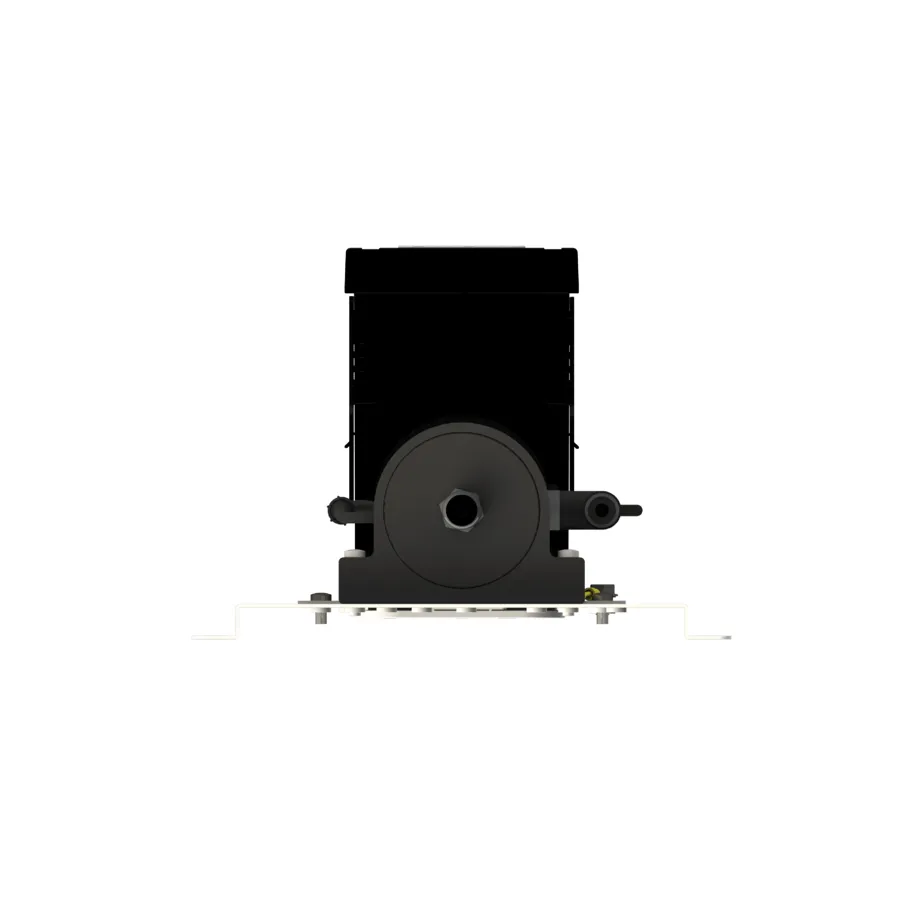

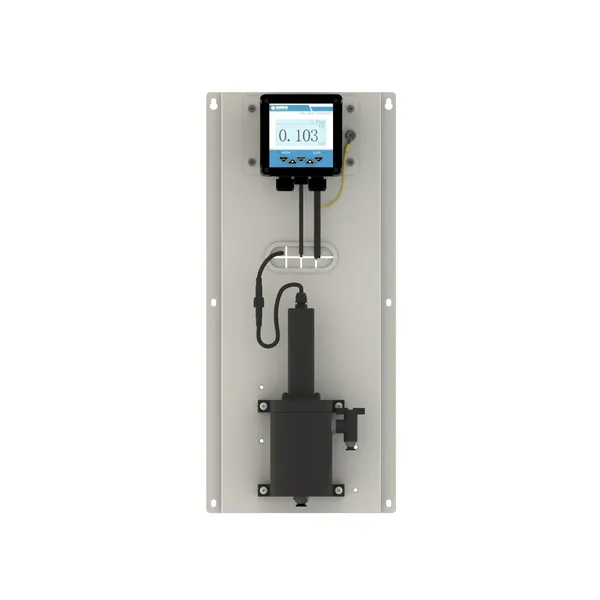

Turbidity Online Analyzer YG-NHT/12 (Mid-Range)
Les spécifications détaillées sont affichées en anglais.
The controller single-parameter kit is a product independently developed by YuanGan for online water quality monitoring. A universal controller works together with a mid-range turbidity sensor to continuously monitor turbidity in the solution. The data can be sent to a recorder through the transmitter output for remote monitoring and logging, or connected to a computer through the RS485 interface using the Modbus-RTU protocol, so the computer can monitor and record the instrument.
Typical applications
- Water Treatment Plants
- Surface Water
- Wastewater Treatment Plants
- Industrial Applications
yan@yuangankeji.com · +86-400-1688-667 · WhatsApp +86 151 7883 0466
Key features
- 01
Stable measurement
- 02
Fast response time
- 03
Long-term maintenance-free operation
- 04
Beveled optical window
- 05
Simple structure
- 06
Sealed structure
Technical Specifications
| Controller parameters | |
|---|---|
| Peak power: | 6 W |
| Operating voltage: | AC 100–240 V;DC24 V (optional) |
| Operating temperature: | 0–60°C |
| Operating humidity: | 10%~95%RH (non-condensing) |
| Storage temperature: | -15–65 °C (sensor not included) |
| Screen size: | 2.8 -inch LCD display |
| Relays: | One set each of high / low limit alarms (250VAC/3A), normally open contact relay |
| Digital output: | RS485, Modbus protocol |
| Analog output: | Isolated 4–20 mA transmitter output, max. loop 750 Ω, ±0.2% F.S. |
| Sensor parameters | |
| Range: | 0–1000 NTU |
| Resolution: | 0.01 NTU |
| Limit of detection: | 0.05 NTU |
| Accuracy: | 5% or ±0.05 NTU (whichever is greater) (based on Formazin primary standard at 25 °C) |
| Repeatability: | 1% (based on Formazin primary standard at 25 °C) |
| Measurement method: | 90° light scattering method (ISO 7027) |
| Light source: | 860nm laser LED |
| Calibration method: | Factory-calibrated, using the default calibration curve; One-point calibration, Formazin two-point calibration, 2- to 6-point custom calibration |
| Response time (T90): | ≤120 s |
| System parameters | |
| Backplate dimensions: | 230 × 510 mm (W × H) |
| Backplate material: | 304 stainless steel |
| Installation: | Wall-mounted |
| (Note: specifications may change with product improvements; YuanGan reserves the right to modify them.) | |
