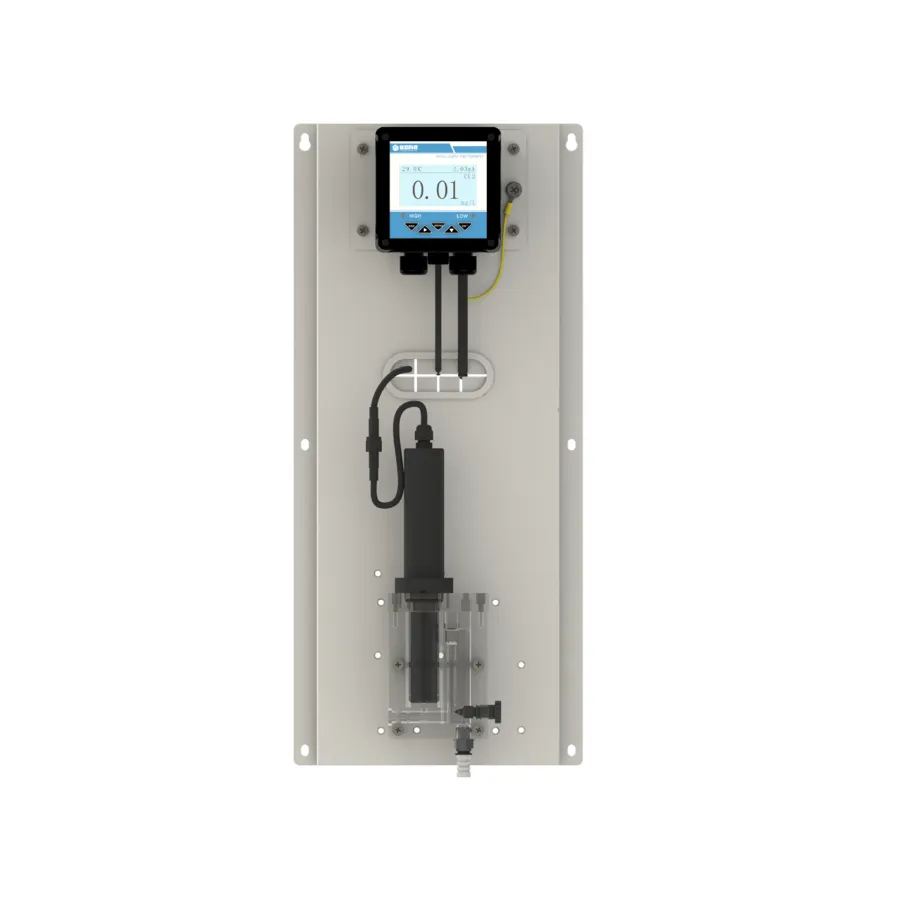

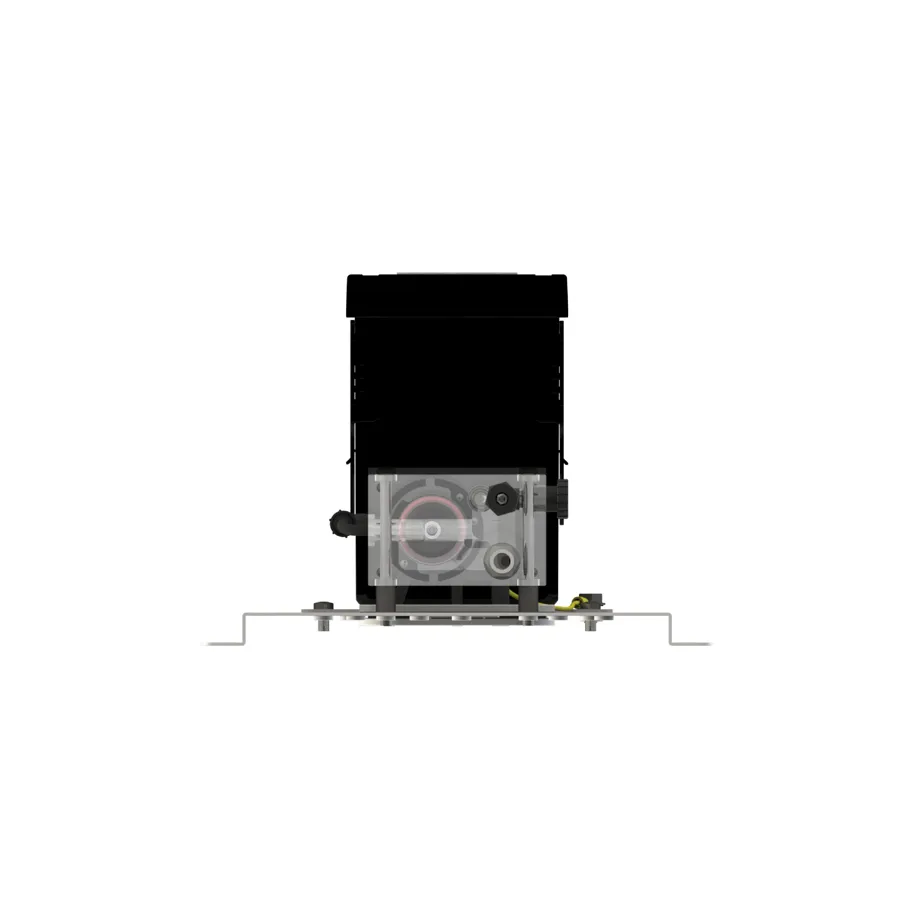

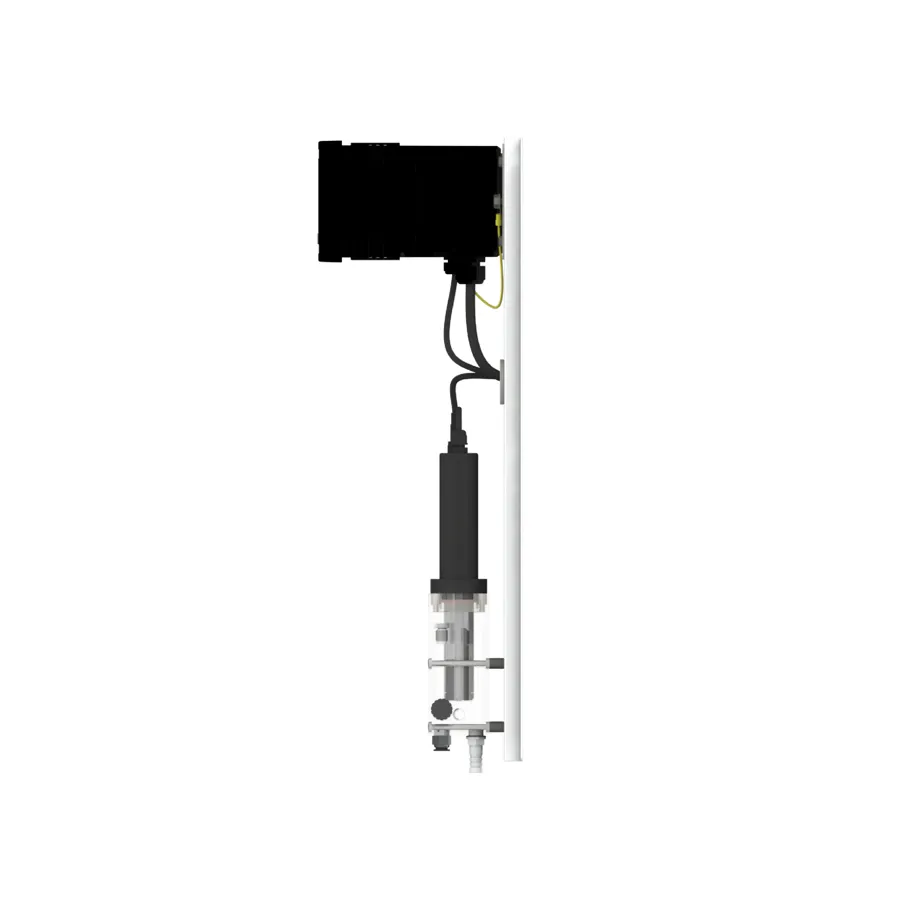

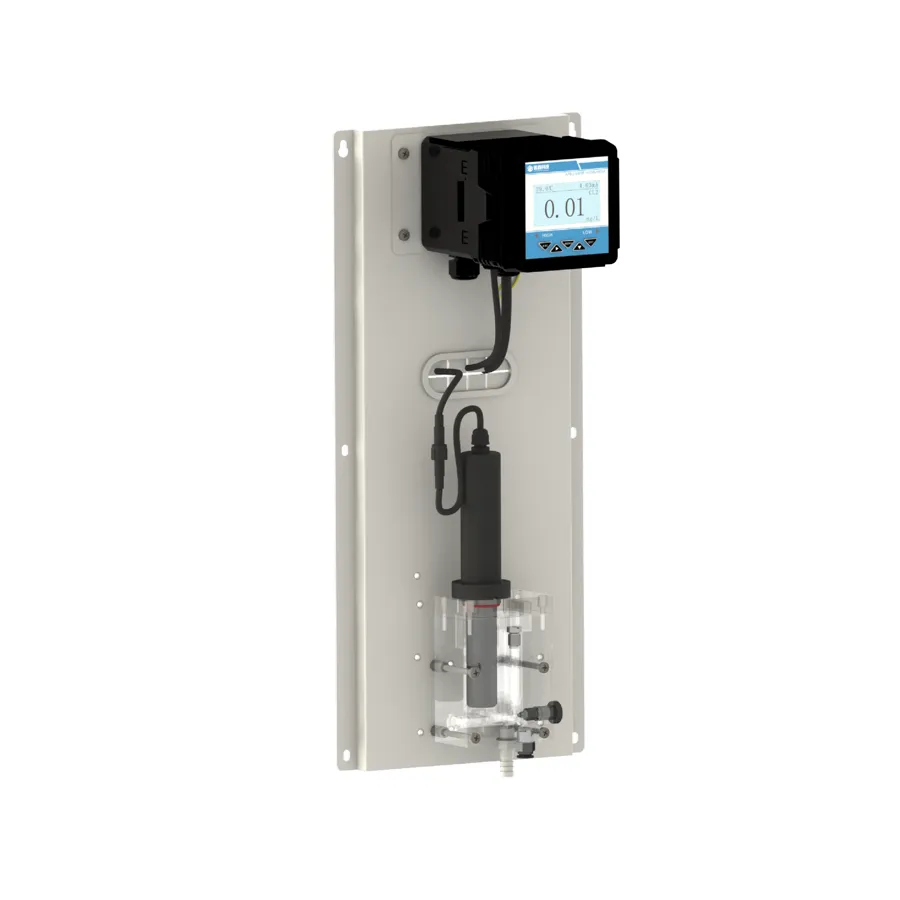

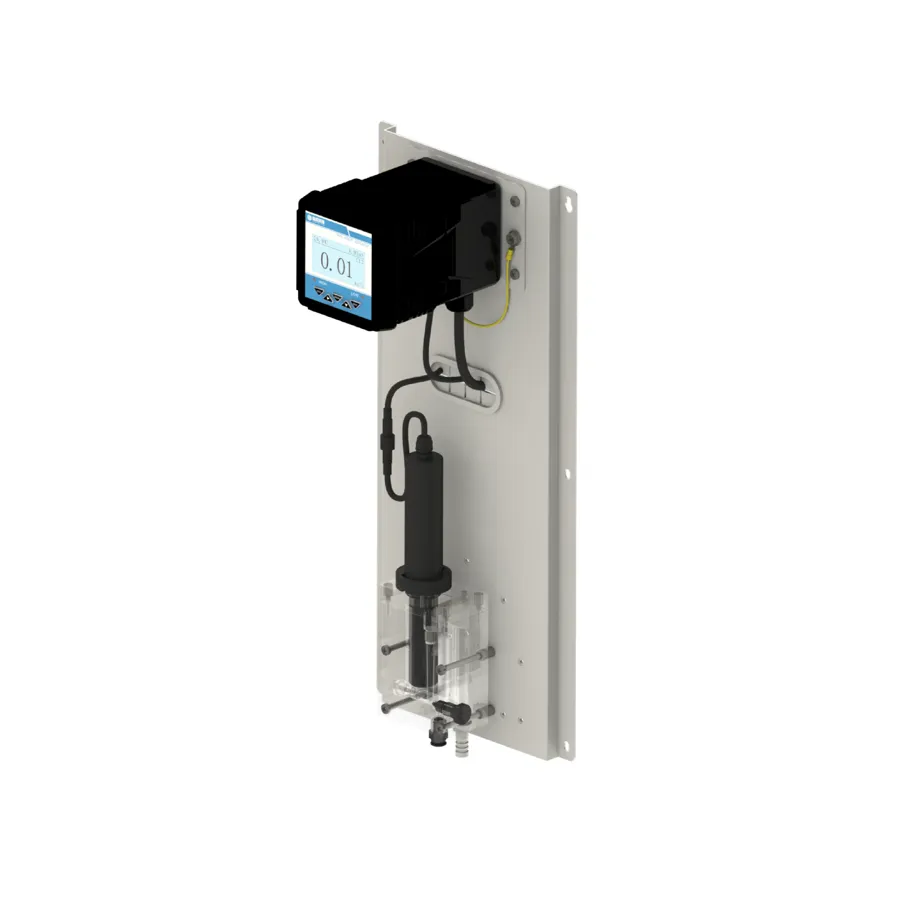

Disinfectant Online Analyzer YG-NHC/21 (Membrane)
Spesifikasi detail ditampilkan dalam bahasa Inggris.
The disinfectant online analyzer is a product independently developed by YuanGan for online water quality monitoring. A universal controller works together with a membrane-covered disinfectant sensor to continuously monitor disinfectant (free chlorine, chlorine dioxide, ozone, total chlorine, trichloroisocyanuric acid) in the solution. The data can be sent to a recorder through the transmitter output for remote monitoring and logging, or connected to a computer through the RS485 interface using the Modbus-RTU protocol, so the computer can monitor and record the instrument.
Typical applications
- Treated Water (Plant Outlet)
- Distribution Network
- Secondary Water Supply
- Network Ends
- Swimming Pools
- Medical Wastewater
- Total chlorine
yan@yuangankeji.com · +86-400-1688-667 · WhatsApp +86 151 7883 0466
Key features
- 01
Electrochemical sensor with no reagent consumption or pollutant discharge
- 02
Three-electrode design for stable zero point and high sensitivity
- 03
Membrane-covered design protects the working electrode from fouling and failure
- 04
Built-in high-precision sampling circuit gives the sensor good linearity
- 05
Sensor reading correlates accurately with the DPD method
Technical Specifications
| Controller parameters | |
|---|---|
| Peak power: | 6 W |
| Operating voltage: | AC100–240 V; DC24 V (optional) |
| Operating temperature: | 0–60°C |
| Operating humidity: | 10%~95%RH (non-condensing) |
| Storage temperature: | -15–65 °C (sensor not included) |
| Screen size: | 2.8 -inch LCD display |
| Relays: | One set each of high / low limit alarms (250VAC/3A), normally open contact relay |
| Digital output: | RS485, Modbus protocol |
| Analog output: | Isolated 4–20 mA transmitter output, max. loop 750 Ω, ±0.2% F.S. |
| Sensor parameters | |
| Measured parameters: | Free chlorine, chlorine dioxide, ozone, total chlorine, trichloroisocyanuric acid, temperature |
| Range: | 0–5/20 mg/L |
| Resolution: | 0.001 mg/L |
| Limit of detection: | 0.030 mg/L or lower |
| Accuracy: | ±3% (DPD correlation error +10% or +0.05mg/Lwhichever is greater) |
| Repeatability: | ±3% |
| Measurement method: | Reagent-free electrochemical three-electrode amperometric system |
| Calibration method: | One- or two-point calibration |
| Response time (T90): | ≤90 s |
| Electrode material: | Gold + stainless steel + silver chloride |
| System parameters | |
| Backplate dimensions: | 230 × 510 mm (W × H) |
| Backplate material: | 304 stainless steel |
| Installation: | Wall-mounted |
| (Note: specifications may change with product improvements; YuanGan reserves the right to modify them.) | |
