Accessories & Flow Cells

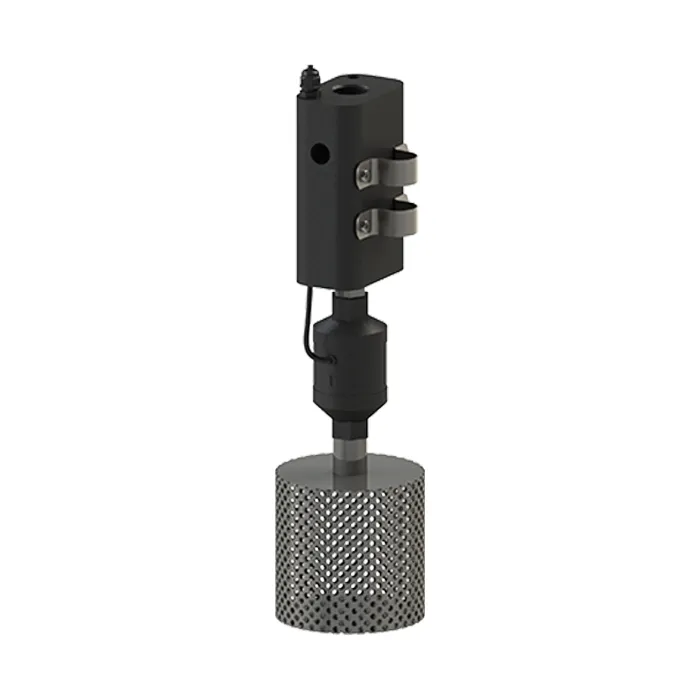

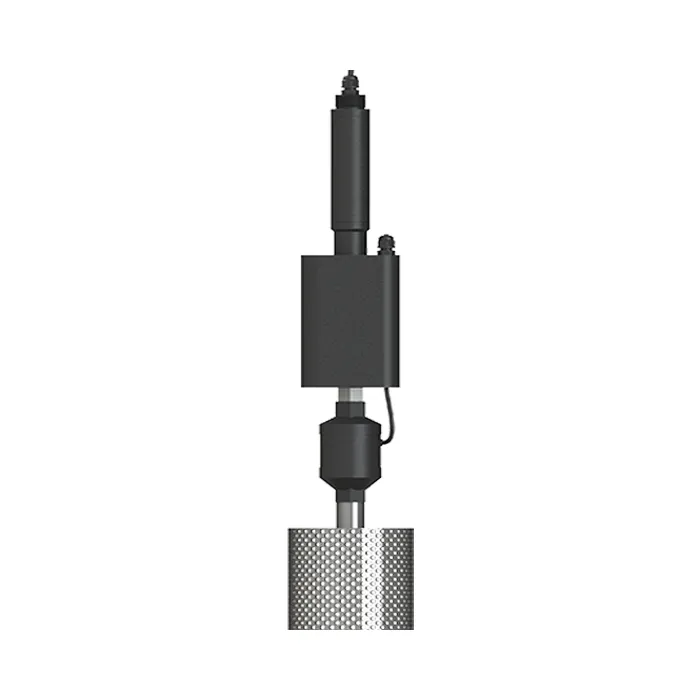

Submersible Disinfectant Installation Kit YG-PJ/CL-T1
상세 사양은 영어로 표시됩니다.
This mounting accessory is developed by YuanGan for installing and using submersible disinfectant sensors. It keeps the sample flowing at a constant velocity of more than 400 mL/min so the disinfectant sensor can keep working normally. It also filters out large impurities and suspended solids to prevent the pump from jamming and being damaged, extending the life of the pump and the disinfectant electrode.
Typical applications
- Water Treatment Plants
- Distribution Network
- Secondary Water Supply
- End Users
- Swimming Pool Water
- Other Water Treatment Equipment
yan@yuangankeji.com · +86-400-1688-667 · WhatsApp +86 151 7883 0466
Key features
- 01
Constant sample flow rate
Keeps the disinfectant sensor working stably
- 02
Debris filtering
Extends the life of the sensor and the pump
Technical Specifications
| Pump power supply: | DC 24 V |
|---|---|
| Pump cable length: | Default 10 m |
| Dimensions: | 384 mm × Φ100 mm |
| Peak power: | 15 W |
| (Note: specifications may change with product improvements; YuanGan reserves the right to modify them.) | |
