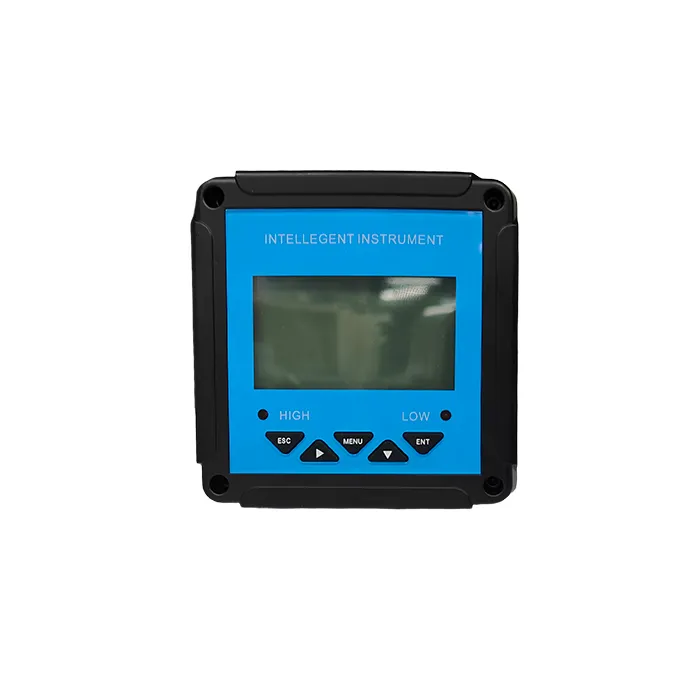

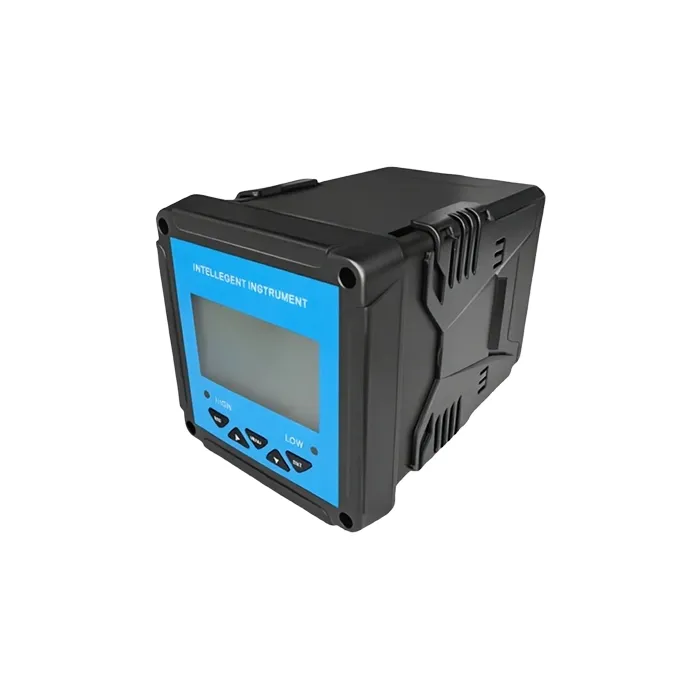

Universal Controller YG-UT/KA

YG-UT/KA

상세 사양은 영어로 표시됩니다.

The universal water quality controller works with a range of YuanGan digital water quality sensors to continuously monitor turbidity, free chlorine, total chlorine, chlorine dioxide, trichloroisocyanuric acid, pH, ORP, conductivity and other water quality parameters. The data can be sent to a recorder through the transmitter output for remote monitoring and logging, or connected to a computer through the RS485 interface using the Modbus-RTU protocol, so the computer can monitor and record the instrument.

견적 요청 WhatsApp

yan@yuangankeji.com · +86-400-1688-667 · WhatsApp +86 151 7883 0466

Key features

01
Automatic sensor recognition
Plug and play
02
Offline calibration
Supports offline sensor calibration
03
Multi-parameter options
Turbidity, disinfectant (free chlorine / total chlorine / chlorine dioxide / ozone / trichloroisocyanuric acid), pH, ORP, conductivity, suspended solids …

Technical Specifications

Compatible sensors:	Turbidity, disinfectant (free chlorine / total chlorine / chlorine dioxide / ozone / trichloroisocyanuric acid), PH, ORP, conductivity, suspended solids etc.
Peak power:	6 W
Weight:	Approx. 0.65 kg (sensor not included)
Operating voltage:	AC100–240 V; DC24 V (optional)
Operating temperature:	0–60°C
Operating humidity:	10%~95%RH (non-condensing)
Storage temperature:	-15–65°C (sensor not included)
Screen size:	2.8 -inch LCD display
Relays:	One set each of high / low limit alarms (250VAC/3A), normally open contact relay
Digital output:	RS485, Modbus protocol
Analog output:	Isolated 4–20 mA transmitter output, max. loop 750 Ω, ±0.2% F.S.
Overall dimensions:	100 × 100 × 150 mm (W × H × D)
Cut-out dimensions:	92.5⁺¹ mm × 92.5⁺¹ mm
(Note: specifications may change with product improvements; YuanGan reserves the right to modify them.)
