Multi-Parameter Online Analyzer Kit YG-NT
Las especificaciones detalladas se muestran en inglés.

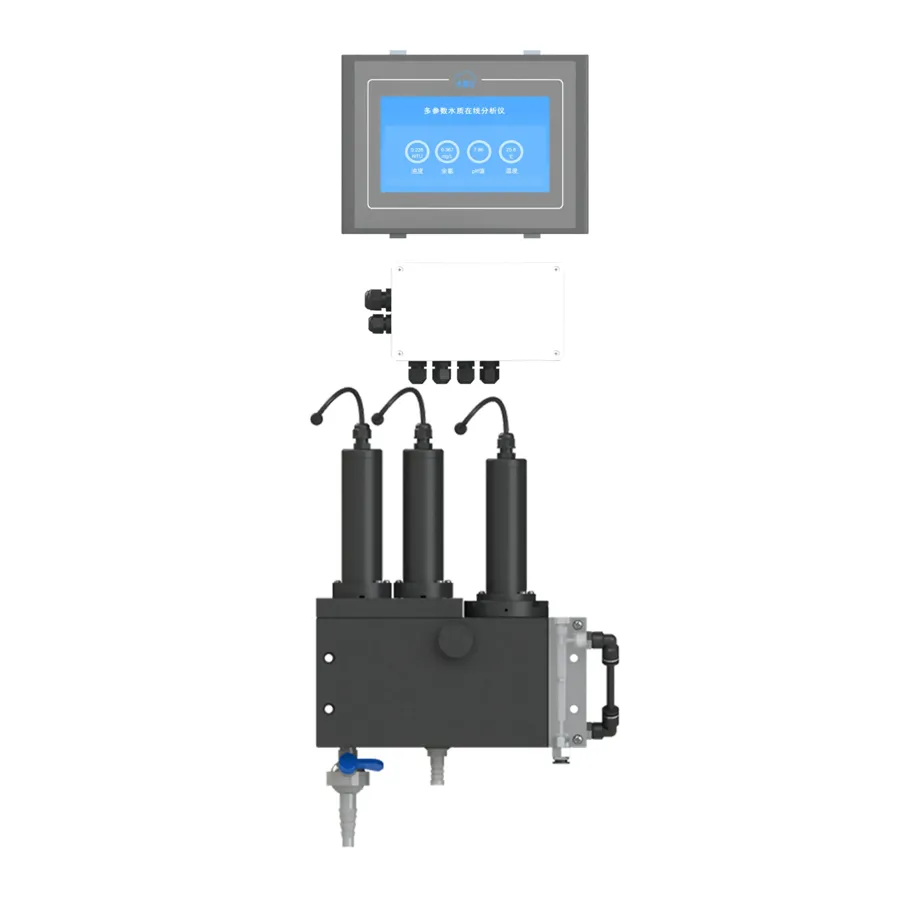

The multi-parameter online water quality analyzer kit is a water quality monitoring product developed by YuanGan for system integrators. Its minimalist, compact design makes system integration easy, and it has a large color touchscreen interface with remote monitoring through the cloud platform and mobile devices. Users can choose any combination of turbidity, disinfectant (free chlorine / chlorine dioxide / ozone / total chlorine / trichloroisocyanuric acid), pH, ORP, pH/ORP, conductivity and TDS.
Typical applications
- Water Treatment Plants
- Water Distribution Network
- Swimming Pools
- Cooling Circulating Water
- Water Treatment Projects
- Medical Wastewater
yan@yuangankeji.com · +86-400-1688-667 · WhatsApp +86 151 7883 0466
Key features
- 01
Simultaneous multi-parameter output
Turbidity, disinfectant (free chlorine / total chlorine / chlorine dioxide / ozone / trichloroisocyanuric acid), pH, ORP, pHORP, conductivity, TDS, dissolved oxygen, temperature value
- 02
Highly integrated
Integrated flow cell combines multiple monitoring parameters
- 03
Fast productization
Users only need to make a mounting backplate or enclosure to build their own multi-parameter instrument
- 04
Network capability
Supports remote data monitoring via the cloud platform and mobile devices, plus RS485-Modbus communication
Technical Specifications
| System parameters | |
|---|---|
| Optional parameters | Turbidity, disinfectant (free chlorine / total chlorine / chlorine dioxide / ozone / trichloroisocyanuric acid), pH, ORP, pH/ORP, conductivity, TDS, dissolved oxygen |
| Display | 7-inch color touchscreen (10-inch optional) |
| Operating voltage | 100–240VAC, 50/60 Hz |
| Digital output | RS485 interface, Modbus protocol |
| Operating temperature | -5 °C~45 °C (non-freezing) |
| Sample flow | Adjustable range: 500–1000 mL/min (user-adjustable) |
| Inlet pressure | ≤0.6MPa |
| Measurement method | |
| Turbidity | Light scattering method (ISO 7027) |
| Disinfectant | Reagent-free electrochemical three-electrode amperometric system |
| pH/ORP | Electrochemical (electrode) method |
| Conductivity/TDS | Conductivity cell method (automatic temperature compensation) |
| Dissolved oxygen | Fluorescence method |
| Temperature | Thermistor method |
| Range | |
| Turbidity | 0–100/1000 NTU |
| Disinfectant | 0–5/20 mg/L |
| pH | 0–14 |
| ORP | -20000 mV ~ +20000 mV |
| Conductivity | 0–20000 μS/cm, pure-water electrode: 0–20 μS/cm |
| TDS | 0–1000/10000 mg/L, pure-water electrode: 0–10 mg/L |
| Dissolved oxygen | 0–20 mg/L |
| Temperature | -5–60 °C |
| Accuracy | |
| Turbidity | 0–100 NTU: 2% or ±0.05 NTU (whichever is greater); 0–1000 NTU: 5% or ±0.5 NTU (whichever is greater); (based on Formazin primary standard at 25 °C) |
| Disinfectant | ±5% or ±0.05 mg/L (whichever is greater) |
| pH | ±0.05 |
| ORP | ±20 mV |
| Conductivity/TDS | ±0.8%F.S. pure-water electrode: 3%F.S. |
| Dissolved oxygen | ±3% or ±0.2mg/Lwhichever is greater |
| Temperature | ±0.5 °C |
| Resolution | |
| Turbidity | 0–100 NTU: 0.001 NTU; 0–1000 NTU: 0.01 NTU |
| Disinfectant | 0.001 mg/L |
| pH | 0.01 |
| ORP | 1 mV |
| Conductivity | 0.01uS/cm |
| TDS | 0.01 mg/L |
| Dissolved oxygen | 0.01 mg/L |
| Temperature | 0.1 °C |
| (Note: specifications may change with product improvements; YuanGan reserves the right to modify them.) | |
