Accessories & Flow Cells
Stabilizing Flow Cell YG-QDA
YG-QDA
상세 사양은 영어로 표시됩니다.

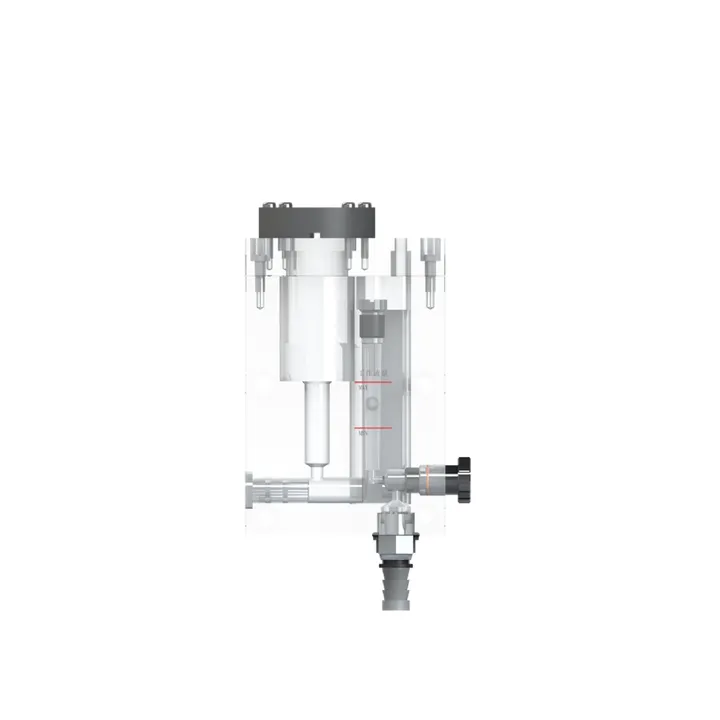

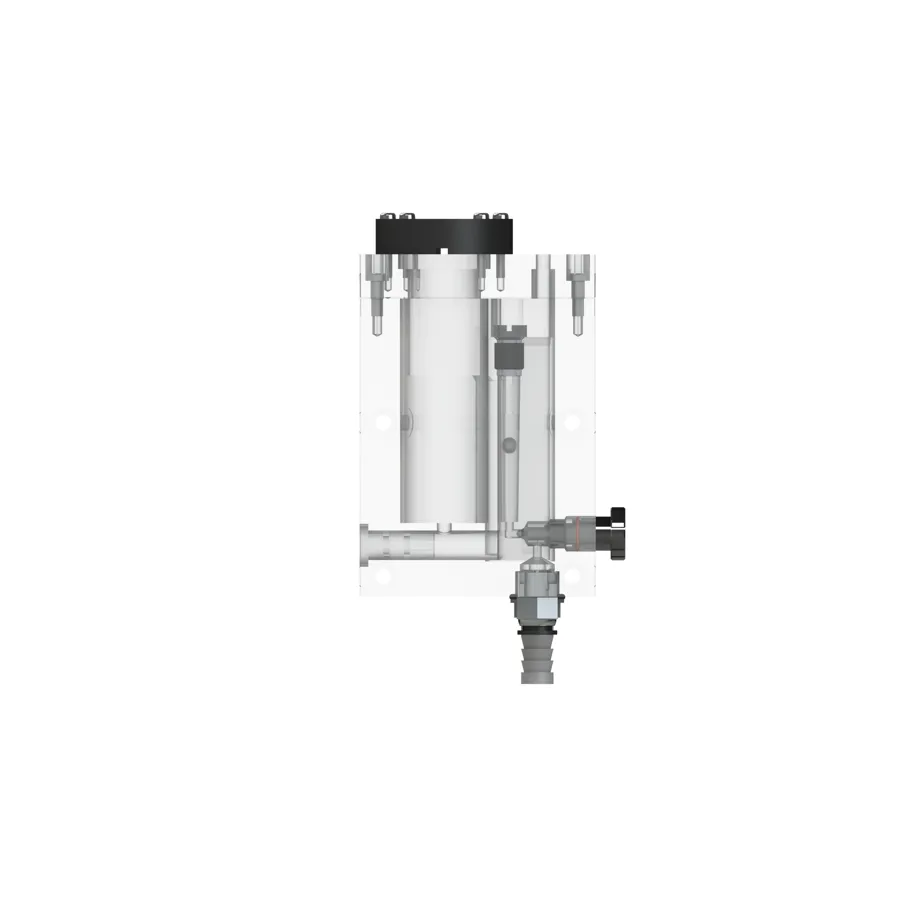

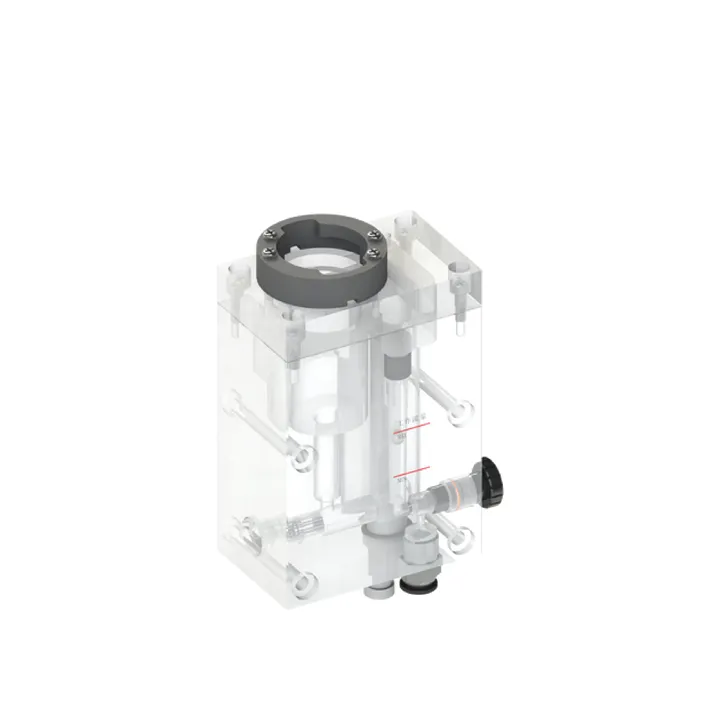

This flow cell is used with YuanGan membraneless and membrane-covered digital disinfectant sensors. It has a built-in inlet regulating valve, and the transparent acrylic body lets you see in real time whether the flow is within the normal range.
Typical applications
- Water Treatment Plants
- Water Distribution Network
- Swimming Pools
- Cooling Circulating Water
- Water Treatment Projects
yan@yuangankeji.com · +86-400-1688-667 · WhatsApp +86 151 7883 0466
Key features
- 01
Built-in regulating valve
Inlet flow can be adjusted to site conditions
- 02
Transparent acrylic flow meter
Shows in real time whether inlet flow is within the normal range
Technical Specifications
| System parameters | |
|---|---|
| Monitored parameters (compatible): | Free chlorine, chlorine dioxide, ozone, total chlorine, trichloroisocyanuric acid |
| Dimensions: | 90 × 160 × 50 mm (W × H × D) |
| Material: | Acrylic |
| Sample flow rate: | 0.5-1L/min |
| (Note: specifications may change with product improvements; YuanGan reserves the right to modify them.) | |
Ordering Information
| Product Name | Model | Compatible sensors | Sensor model |
|---|---|---|---|

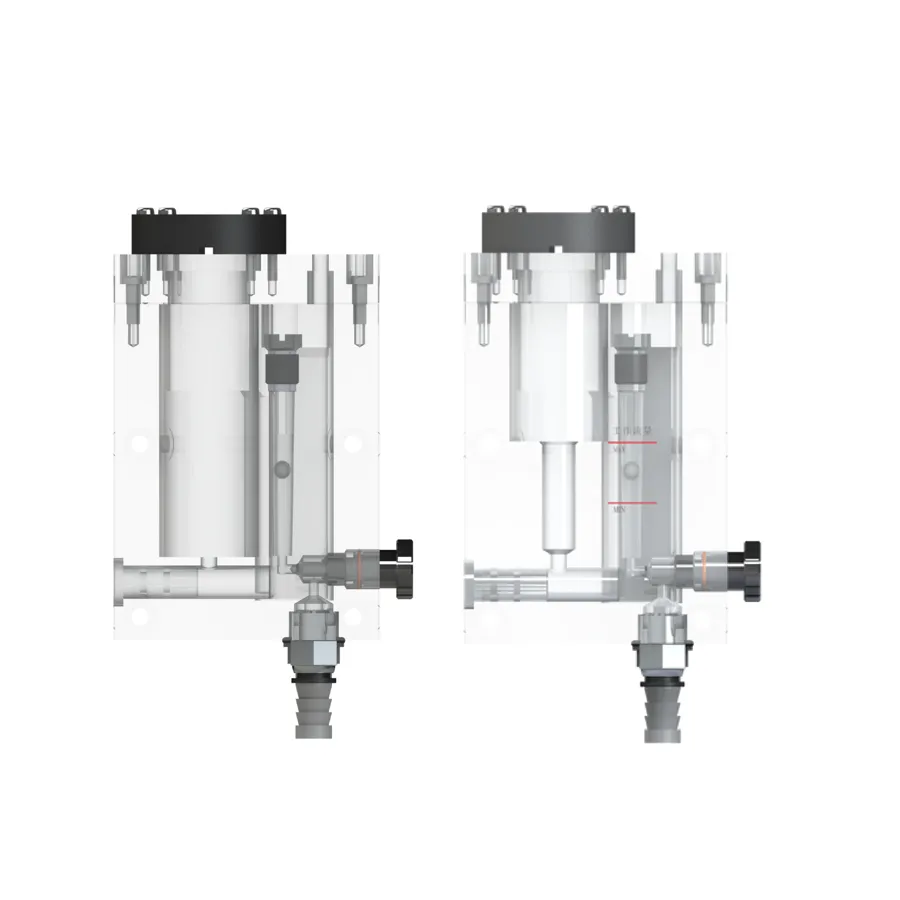

| Constant-flow flow cell | YG-QDA/01 | Membraneless digital disinfectant sensor | YG-CP |
| Constant-flow flow cell | YG-QDA/11 | Membrane-covered digital disinfectant sensor | YG-CM |
